Roll rim paper tray forming machineLocation: Home > Roll rim paper tray forming machine

Product model:  2025211163916

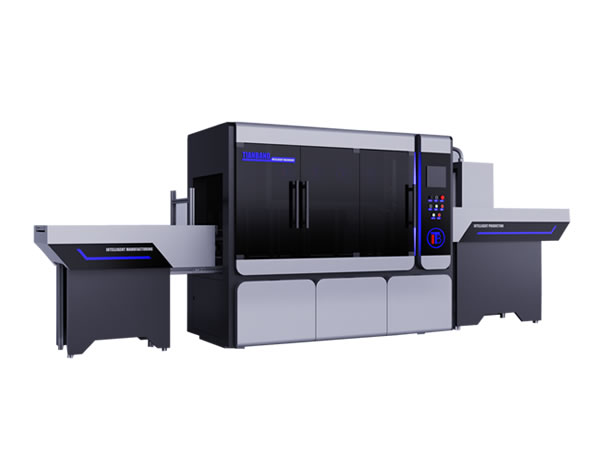

Product name:  JKB-600JZ fully automatic intelligent edge paper box forming machine
 Detail

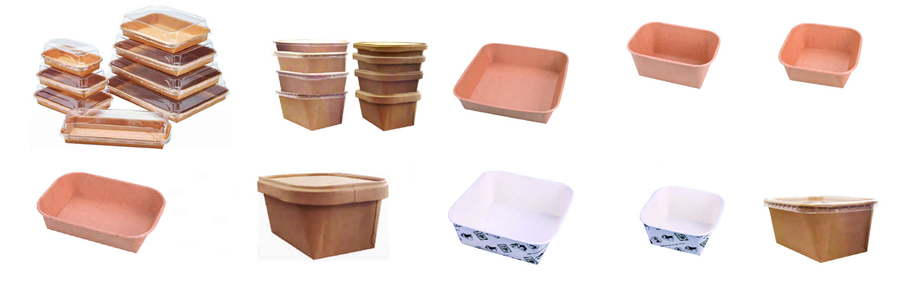

1. The fully automatic intelligent edge paper tray forming machine is a multi station forming machine self-service forming machine. It is a continuous process equipment for producing paper containers such as trays, square paper bowls, and square paper cups for producing laminated paper, through a microcomputer controlled servo system that automatically picks up paper, hydraulic forming, curling, counting and collecting.

Type

JKB-600JZ

Cup Size

纸片尺寸:400X300 (可更换不同模具,Different Size Mold Exchanged

Production Capacity

22-25/min实际产量以产品大小为准)

Suitable

Material

200-350g/m2  PE淋膜纸、防油纸、涂硅纸PET(PE Coated Paper,Greaseproof Paper,Silicon Coated Paper)

Total Power

5KW

Total Weight

1.7T

Overall

Dimension

 2650(L)*1100(W)*1950(H)mm

Gas Source Requirement

 Air pressure 0.5Mpa 需配空压机(Need to buy air compressor)

Working

Volume

 0.2-0.3 m3/min
