Product model:  FBJ-B
Product name:  Fully automatic intelligent paper box molding machine
 Detail


Fully automatic intelligent paper box forming machine(fast food paper box/take away paper meal box,paper box packaging)


Performance introduction:

1. Belongs to automatic paper products molding equipment, speed fast, easy to operate, energy saving and environmental protection and so on. This model uses hot air generating device system,suitable for single PE coated paper, Kraft paper.


2. Automatic feeding, heating(with hot air generating device)hot molding (four comers of adhesive lunch box), automatic counting and collection, microcomputer control and other continuous processes, for the production of single-piece disposable paper lunch boxes, paper lunch boxes, cake cups, food package boxesand so on.


Specification:

Type

FBJ-B

Production capacity

40-50次/分钟times/min(实际产量以产品大小为准)

Maximum size:

480 x480mm

Max Paper Convey Width:

480mm

Suitable Material:

200-400g/m2 PE淋膜纸等(PE Coated paper)

Total Power:

5 KW

Total Weight:

0.8T

Overall Dimension:

2000(L)x1130(W)x1920(H)mm

Working Air Source:

Air pressure 0.4-0.5Mpa (Need to buy compressor)

Working volume:

0.3-0.4m3/min

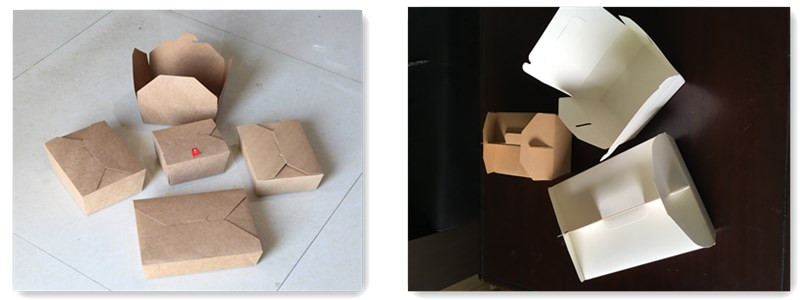

 Sample display:
